LPG recovery using refrigeration loop
Process modeling and simulation with ProSimPlus
|
|
|
Simulation results

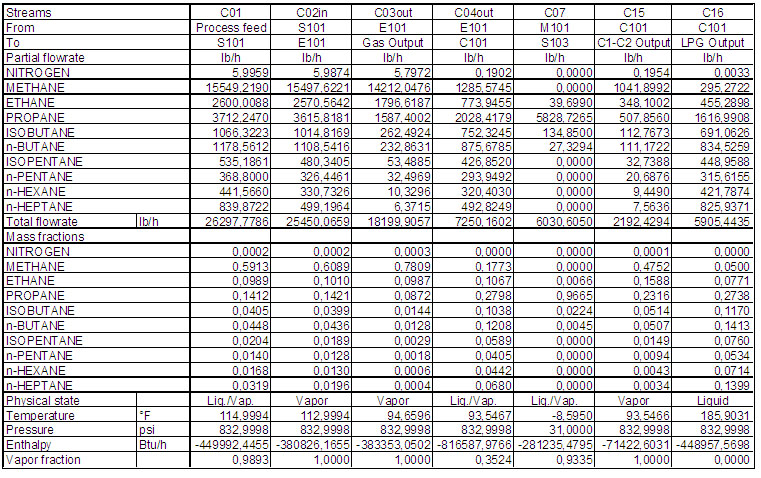

This document presents only the most relevant stream results. In ProSimPlus, mass and energy balances are provided for every stream. Results are also available at the unit operation level.
|
Heat exchanger E101 profile

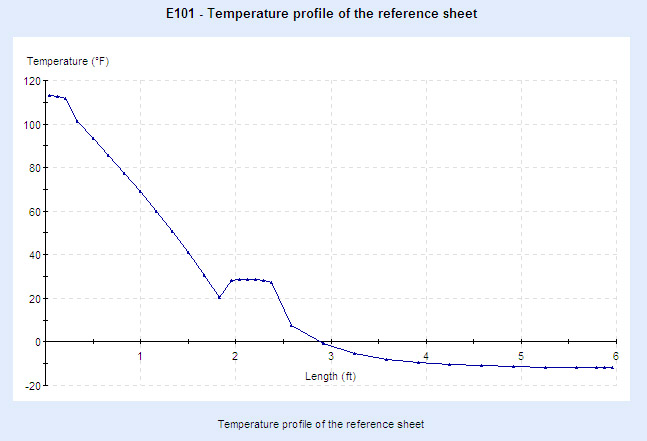

Temperature profiles in the heat exchanger are available after the simulation from the exchanger configuration window.
Column C101 profile
Composition profiles can be accessed after the simulation in each column configuration window, in the “Profiles” tab. Double clicking on the profile will generate the corresponding graph.
Please note that, in ProSimPlus, the first stage corresponds to the condenser and the last stage to the reboiler (numbering from top to bottom).

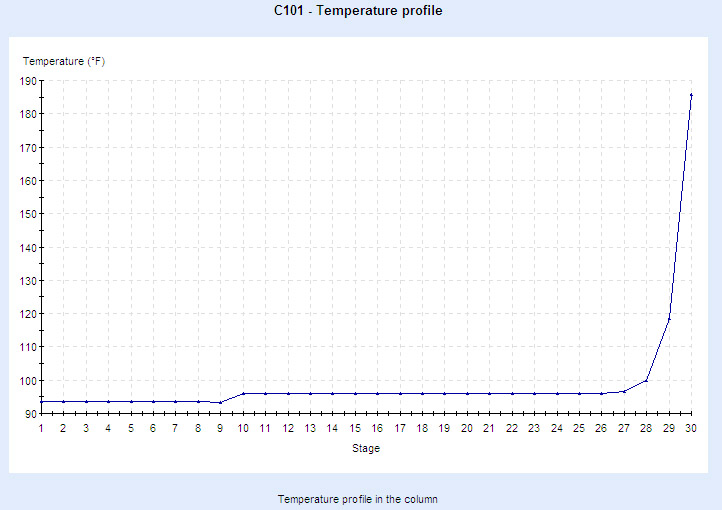

Temperature profile |

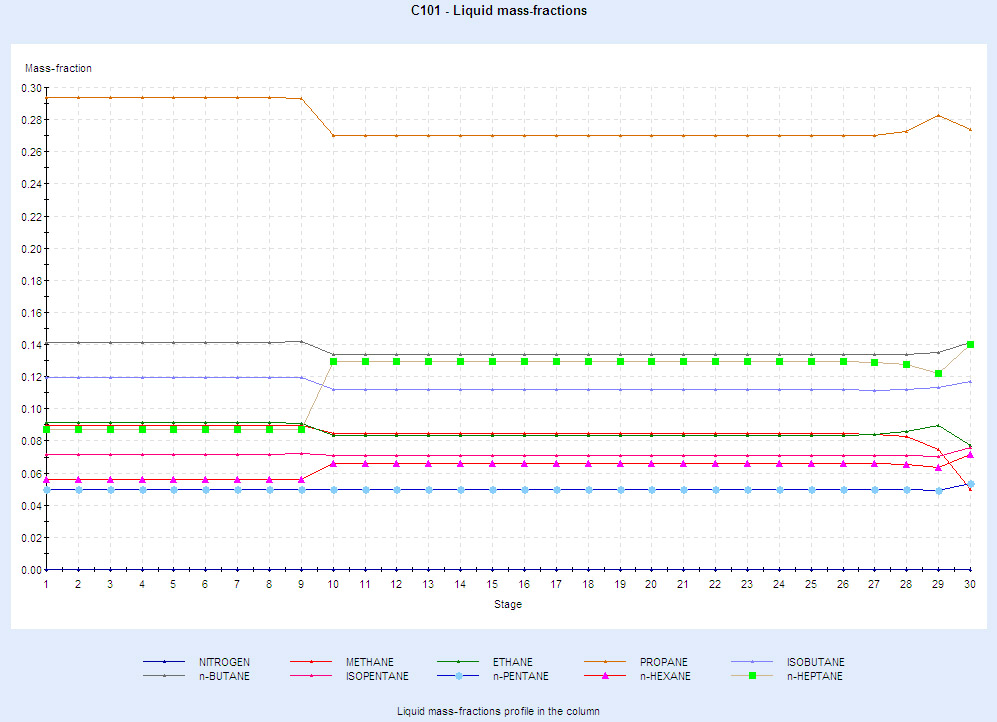

Liquid mass-fractions |
|
